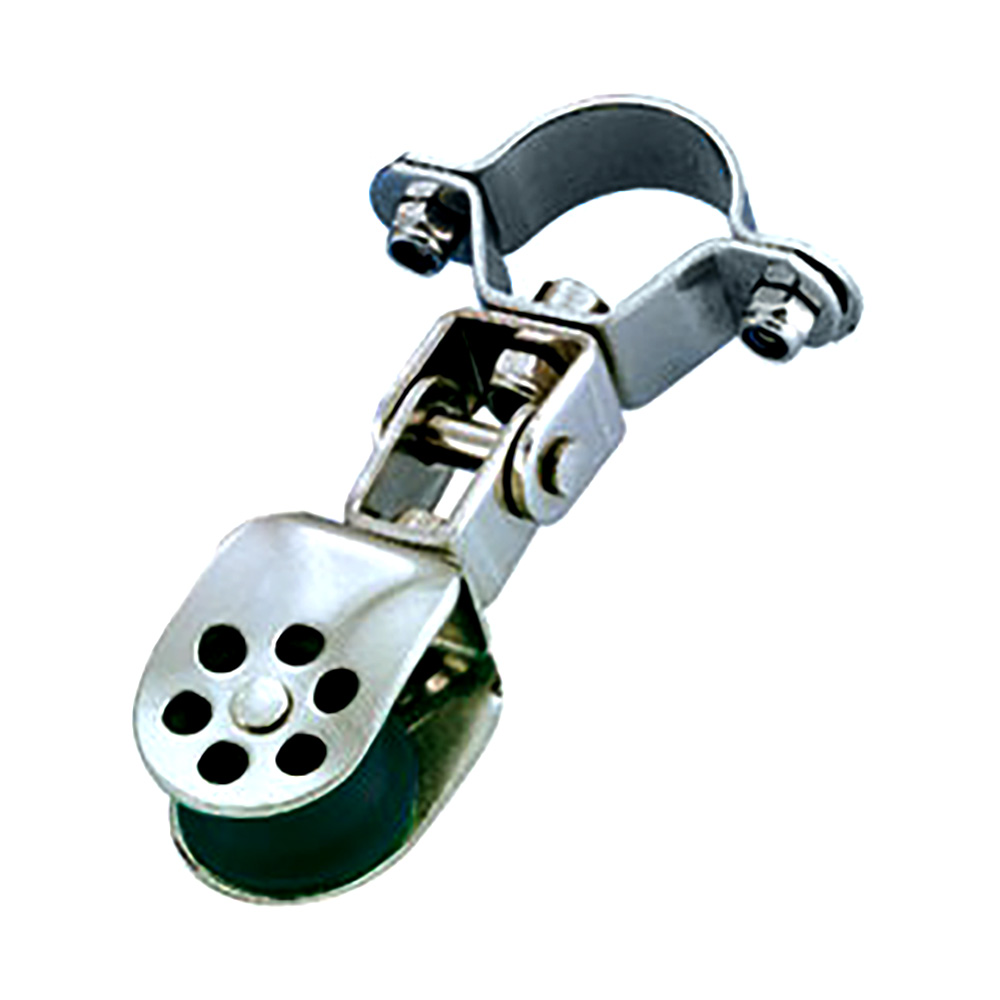

WICHARD PIVOTING STANCHION BLOCK

Stainless Steel Single Block – 25mm Sheave Diameter for 25mm Stanchion Pivoting

• A single block intended for use on a dinghy. The block is light, reliable, and has good performance.

Applications:

• For stanchion applications – furling system line

Specifications:

• Materials Composite sheave and 316L stainless steel grade cheeks
• Rope size: (inch) 5/16″-25/64″ / (mm) 8-10
• Length: (inch) 3 47/64″ / (mm) 95
• Width: (inch) 2 3/32″ / (mm) 53
• Thickness: (inch) 53/64″ / (mm) 21
• Sheave Diameter: (inch) 63/64″ / (mm) 25
• Working load: (lb) 610 / (mm) 280
• Breaking load: (lb) 880 / (mm) 400
• Weight: (lb) 0.154 / (g) 70

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
