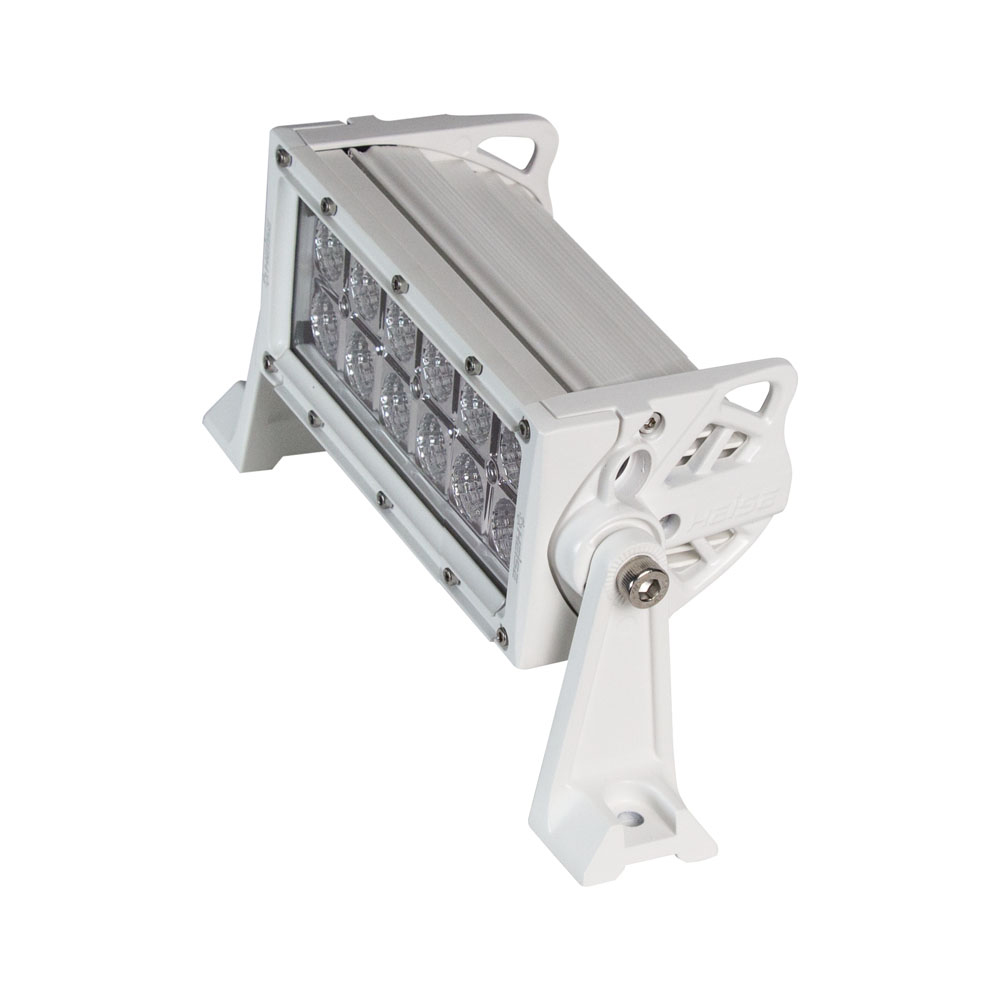

HEISE 8″ DUAL ROW MARINE LIGHT BAR – WHITE CASE

Dual Row Marine LED Light Bar – 8″

SPECS

• Input Voltage: 10-30V DC
• Wattage: 36W (12-3W CREE LEDs)
• Raw Lumens: 2880
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90deg)/Spot(8deg)

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing
• Housing Color: White Coating with UV Inhibitors
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: Die-cast Aluminum
• Hole Dimensions: Brackets turned inward – 7.25in
• Brackets turned outward – 9.5in
• Mounting Bolt Drill – .25in
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: -40degC to +60degC
• Current Consumption: 1.9 amps at 13.8 volts
• IP Rating: IP68
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

• Beam Pattern = Spot-Flood Combo
• Length (Inches) = 8″
• Housing = White
• Voltage – Input Range (Volts) = 12/24v
