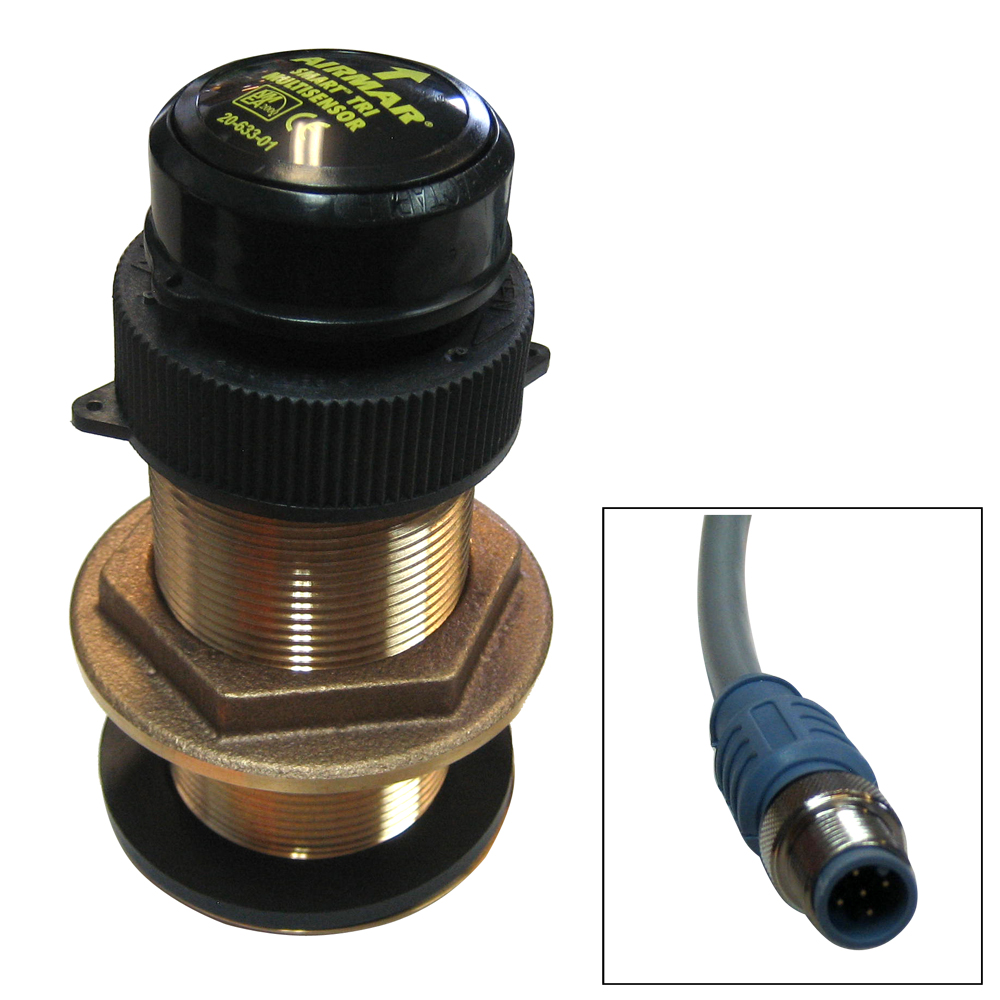

Furuno DT-800MSF – Airmar B617V Housing Style Transducer
Designed with Airmar’s exclusive Broadband Ceramic Technology, the DT-800MSF’s 235 kHz element improves resolution without sacrificing sensitivity. The higher power rating 100W RMS provides spot-on depth readings in as little as 0.45M (1.4′) of water and can reach depths up to 180M (600′)
Standard Features:
- Depth and temperature in one compact bronze housing
- Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy
Weight: 1.5kg (3.4lb)
Acoustic Window: Urethane
Data Update Rate: 1 per second
Minimum Sounding Depth: 0.5M (1.6′)
Maximum Sounding Depth: 180M (590)
Pressure Rating: 3M (10′)
Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)
Smart Sensor Supply Voltage at 100% Sound Power Output: 10 VDC to 25 VDC
Supply Current: 40 mA
Standard Cable Length: 6M
NMEA 2000® Load Equivalency Number (LEN): 4
*p/nm = pulses per nautical mile
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Temperature = Yes
- Mounting Style = Thru-Hull
- Cable Length (Feet) = 6m
