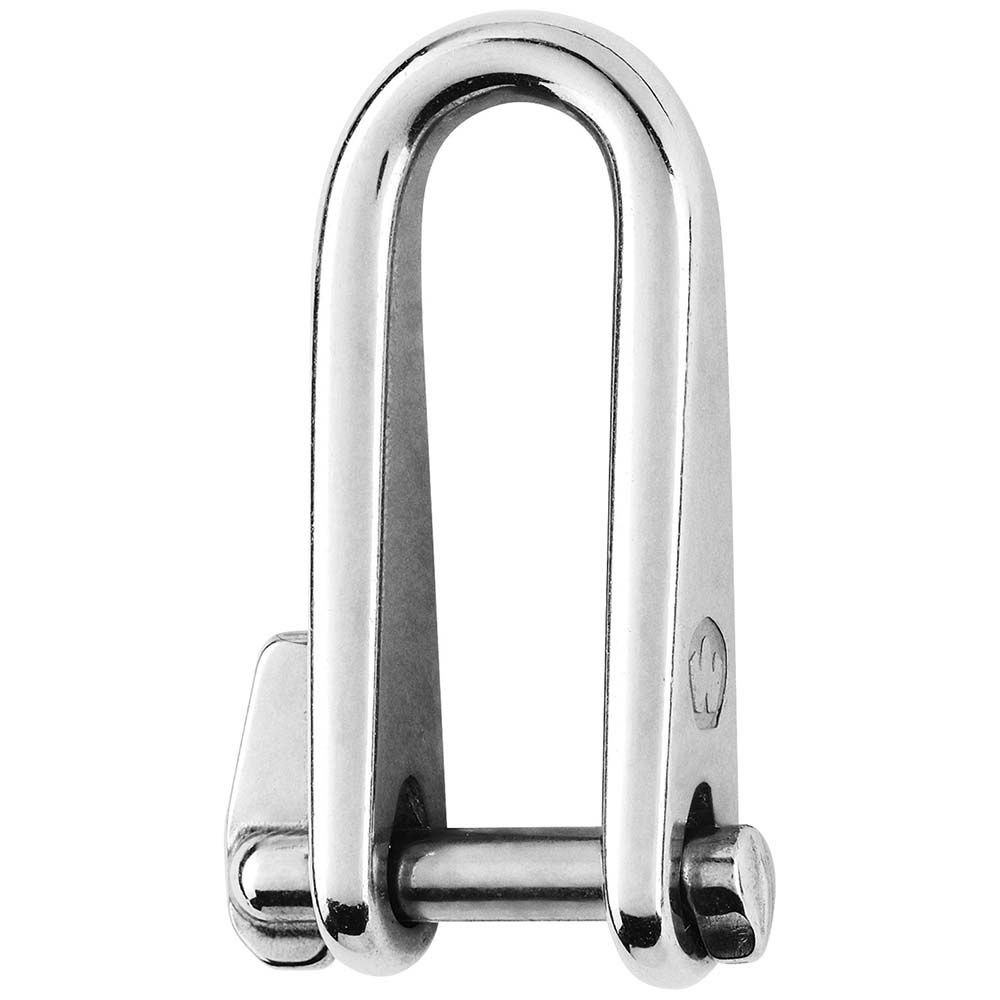

WICHARD 3/16 KEY PIN SHACKLE

Key Pin Shackle – Diameter 5mm – 3/16″

Features:

• Key pin shackle forged in grade 316L stainless steel
• Opening and closing is done simply by rotating the pin half a turn
• No risk to lose the pin as it remains attached
• Outstanding working and breaking loads

Applications:

• Perfect product for halyards or applications requiring to open/close the shackle often

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 880
• Breaking load (lb) 2200
• Weight (lb) 0.068

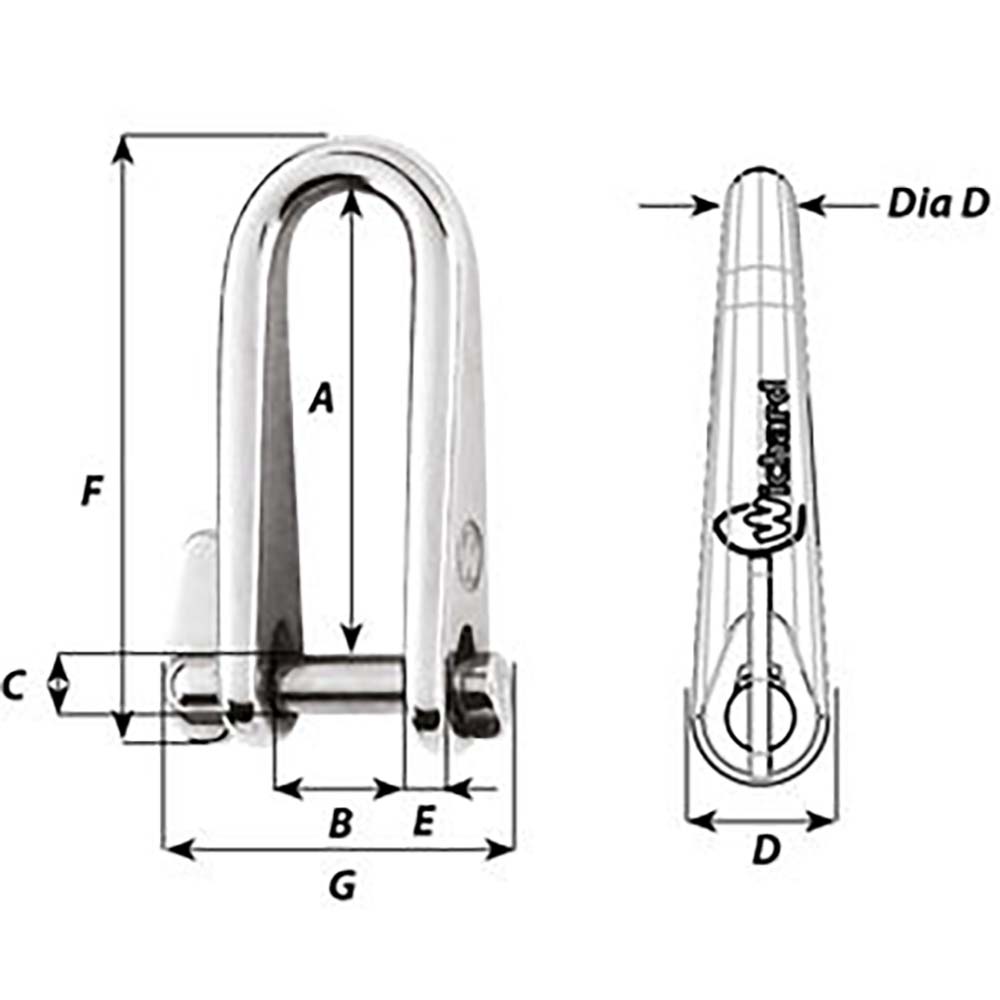

Dimensions (see 2nd image):

• A (inch) 1-29/64″
• B (inch) 33/64″
• C (inch) 13/64″
• D (inch) 7/16″
• D diameter (inch) 13/64″
• E (inch) 5/32″
• F (inch) 1-59/64″
• G (inch) 1-7/32″
