WICHARD 13/32 U-BOLT – L 4 11/32

U-Bolt Pad Eye – 10mm Diameter – 25/64″ – 110mm Length – 4-21/64″

Features:

• Entirely drop forged product with high-quality stainless steel
• Outstanding working and breaking loads
• For any fastening applications (shrouds, lifelines, blocks…)
• Delivered with bolts and counter-plate
• Max tightening torque: 36 Nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks…

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 7930 / (kg) 3600
• Breaking load: (lb) 15430 / (kg) 7000
• Weight: (lb) 0.489 / (g) 222

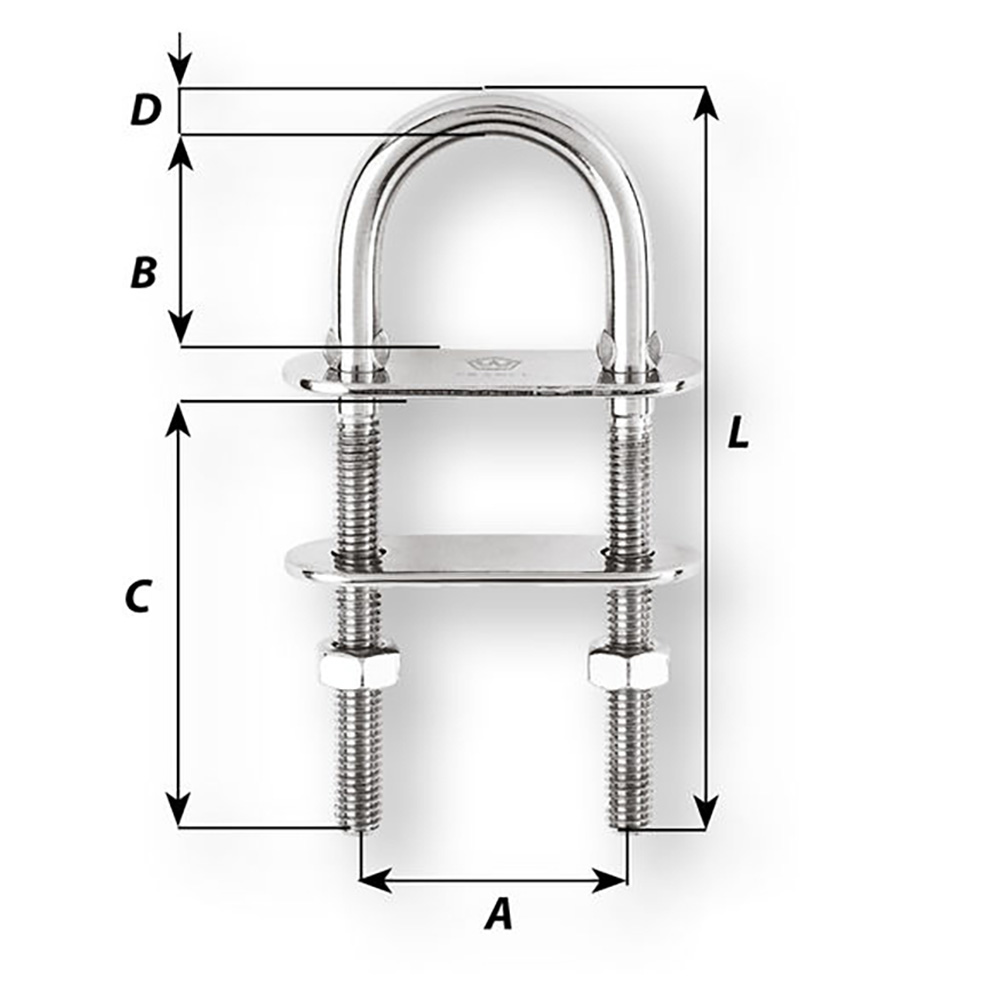

Dimensions:

• A: (inch) 1 37/64″ / (mm) 40
• B: (inch) 1 17/64″ / (mm) 32
• C: (inch) 2 9/16″ / (mm) 65
• D diameter: (inch) 25/64″ / (mm) 10
• Length: (inch) 4 21/64″ / (mm) 110

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
