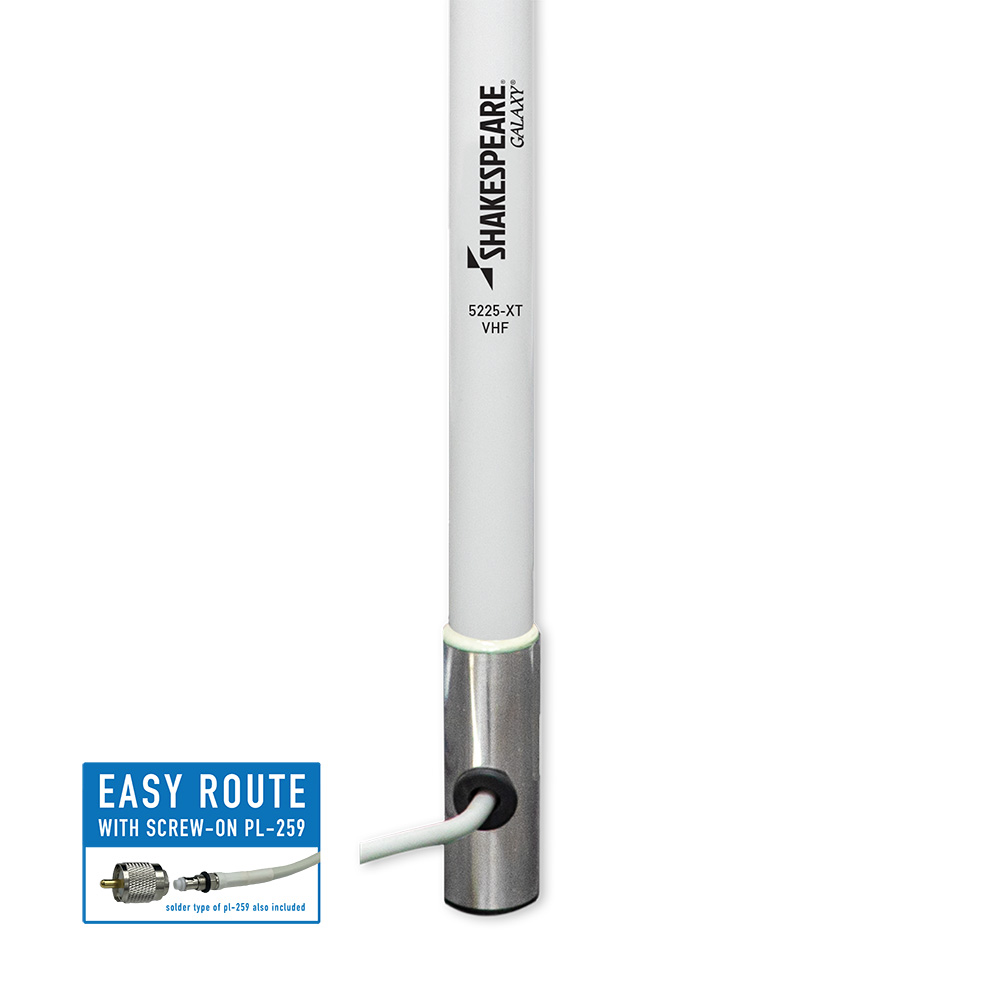

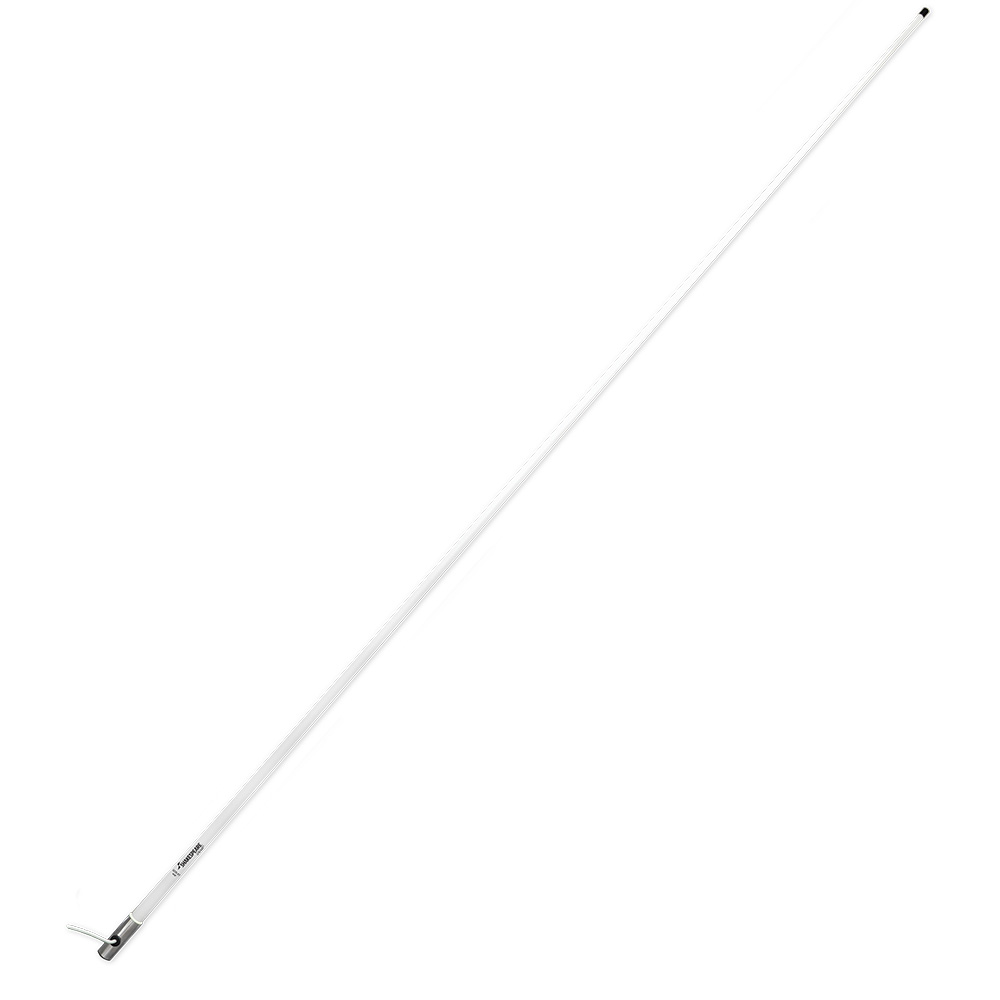

SHAKESPEARE VHF 8FT 5225-XT GALAXY

Galaxy 5225-XT 8′ VHF Antenna – 6dB Gain – Reduced Length

EXTRA TOUGH!

Shakespeare’s best 8′, 6dB Gain antenna. Its Galaxy® design maximizes range and quality in a great looking antenna. The 5225-XT is Shakespeare’s classic Style 5225 in a new, stronger, sturdier, stiffer radome for extra duty. It’s extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome.

Features:

• Collinear-phased 5/8 wave elements
• Brass and copper elements for maximum range and efficiency
• Stainless steel ferrule with standard 1″-14 thread
• 20′ RG-8/X low-loss cable plus a PL-259 connector
• Suggested mount: Shakespeare Style 4187 Ratchet Mount
• One section
• Shakespeare Limited Warranty: 5 years
• Includes FME cables

Technical Specifications:

• Gain: 6dB
• Frequency: VHF Marine Band
• Bandwidth: 3 MHz within 2.0:1 VSWR
• SWR: Nominally 1.5:1 at 156.8 MHz
• Impedance: 50 ohms
• Max Input (Watts): 100 watts
• DC Ground: YES
• Polarization: Vertical

• Antenna Band = VHF
• Color = White
• Construction = Fiberglass
• Ferrule Type = Stainless Steel
• Length (Inches) = 96″
