SHAKESPEARE VHF 6.5′ BROADBAND GALAXY 20FT RG-8X CABLE

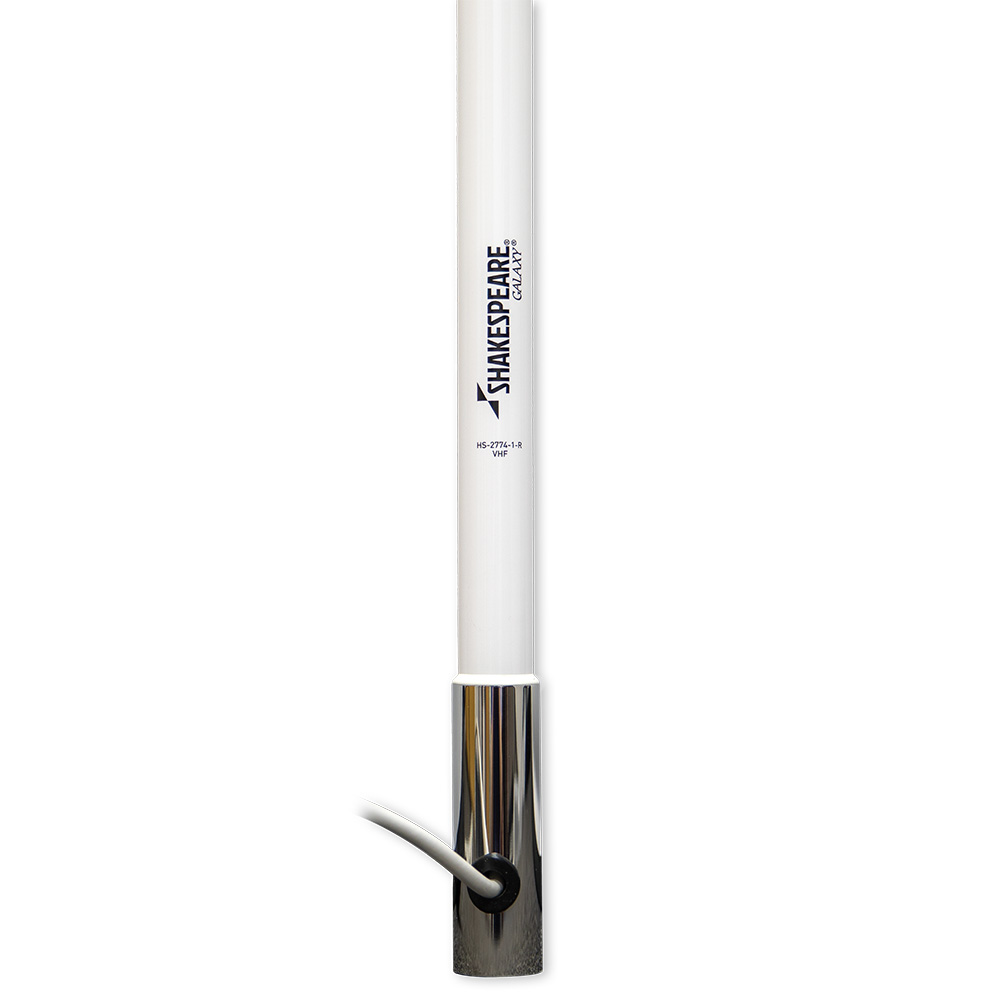

Galaxy 6.5′ Broadband Antenna

The HS 2774-1 is a highly sophisticated antenna with performance maximized from 136 to 174 MHz. It will handle continuous duty at maximum input power. The self-supporting antenna is designed for military, commercial, law enforcement, and disaster preparedness. No tuning or ground plane required.

Features:

• 136-174 MHz Broadband
• Soldered brass elements for maximum range and efficiency
• Stainless steel ferrules, standard 1in-14 threads
• Includes 20 feet of RG-8/X low-loss cable plus a PL-259 connector
• Suggested mount: Use only Shakespeare Style 4187-HD for self-supporting applications. Use a Style 410-R if an upper support bracket installation is preferred.
• Covers: 136-174 MHz
• One section
• Includes FME Cables

Specifications:

• Antenna Length: 6.5ft.

• Antenna Band = VHF
• Color = White
• Construction = Fiberglass
• Ferrule Type = Stainless Steel
• Length (Inches) = 78″
