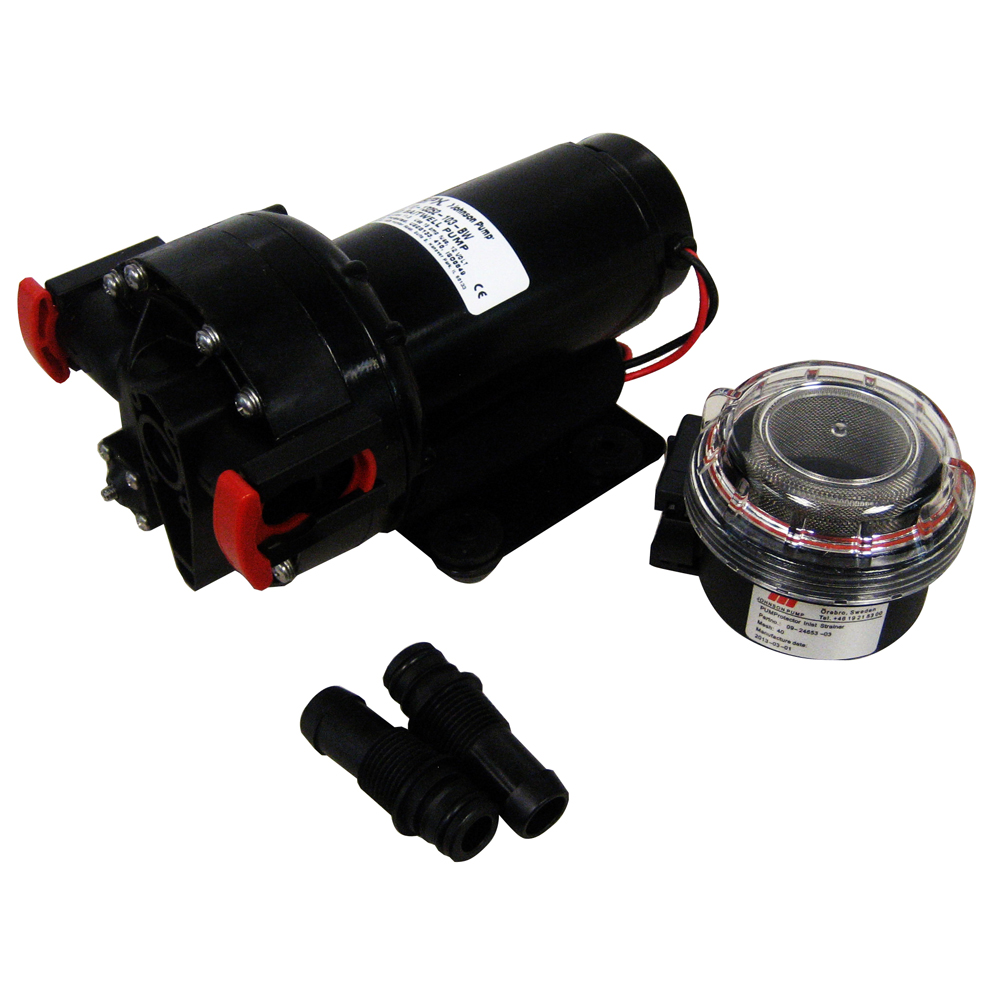

JOHNSON PUMP BAITWELL PUMP 5.2 GPM 12V

Aqua Jet Water Pressure Systems – 5.2GPM – 12V

The five chamber Aqua Jet WPS-series provides a reliable heart for small boat and recreational vehicle water pressure systems. Compared to conventional three or four-chamber diaphragm pumps, the Aqua Jet demonstrates dramatically lower noise and water pulsation characteristics. It is recommended to install the WPS-pumps with an accumulator tank. Always use a PUMProtector inlet strainer before the pump intake.

Diaphragm: Santoprene
Valves EPDM
Body: Nylon/Polypropylene
Motor: 150W
Pressure Cut Off:2.8 bar – 41psi
Fuze Size: 15 A
Connection:3/8″ NPT/hose 1/2″, 1/2″NPT/Hose 3/4″, 1/2″ NPT, 3/4″ Hose
Weight: 2 kg /4.5lbs
Length: 236,5 mm/9.31″
Width: 210 mm/8.25″
Height: 116 mm/4.575″

• Volts = 12v
