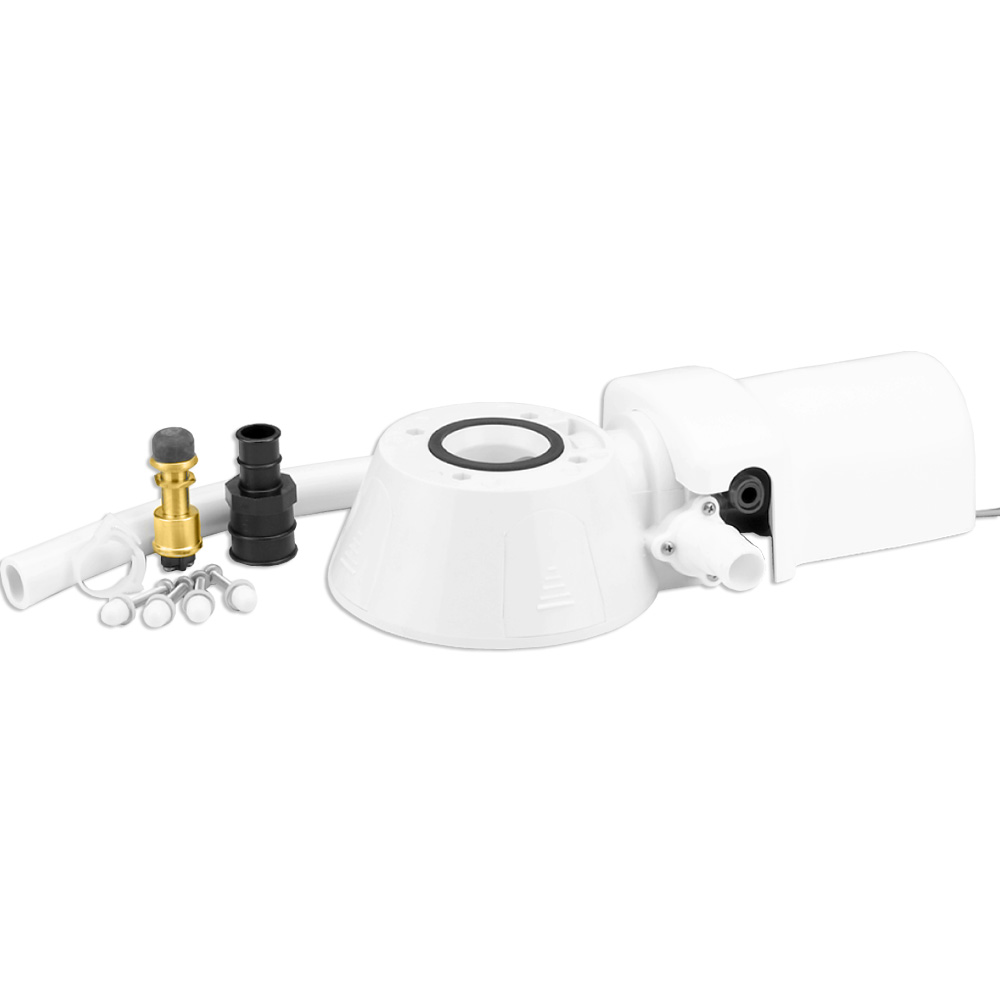

JABSCO ELECTRIC TOILET CONVERSION KIT 12V

Conversion Kit

Convert Jabsco manual toilet compact and regular bowl models to full electric operation without the need to alter existing inlet or discharge seacocks.

• Also converts most toilets with 4 bolt screw pattern on a 3-3/4″ diameter bolt circle such as Graco, Raritan, Wilcox Crittenden, Mansfield and Sealand
• Push button flushing for ease and simplicity of operation
• Comprehensive kit has all necessary parts, including flushing pump, macerator pump, switch, adaptors, clamps hose and fastening
• Flushing pump self-priming up to 4ft vertical lift
• May be installed 3ft below the waterline
• For installations fitted with vented loops use a solenoid valve on inlet hose
• Complies with USCG 183.410 and ISO 8846 MARINE (Ignition Protection)

Fitting:Connections for 5/8″ – 3/4″ ID inlet hose, 1″ – 1-1/2″ ID outlet Hose
Size: 13-1/4″ long x 8-1/4″ wide x 3-1/4″ high

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

• Inlet Size = 5/8″ or 3/4″
• Outlet Size = 1″ or 1-1/2″
• Suction Lift (ft.) = 4′
• Volts = 12v
• Type = Misc
