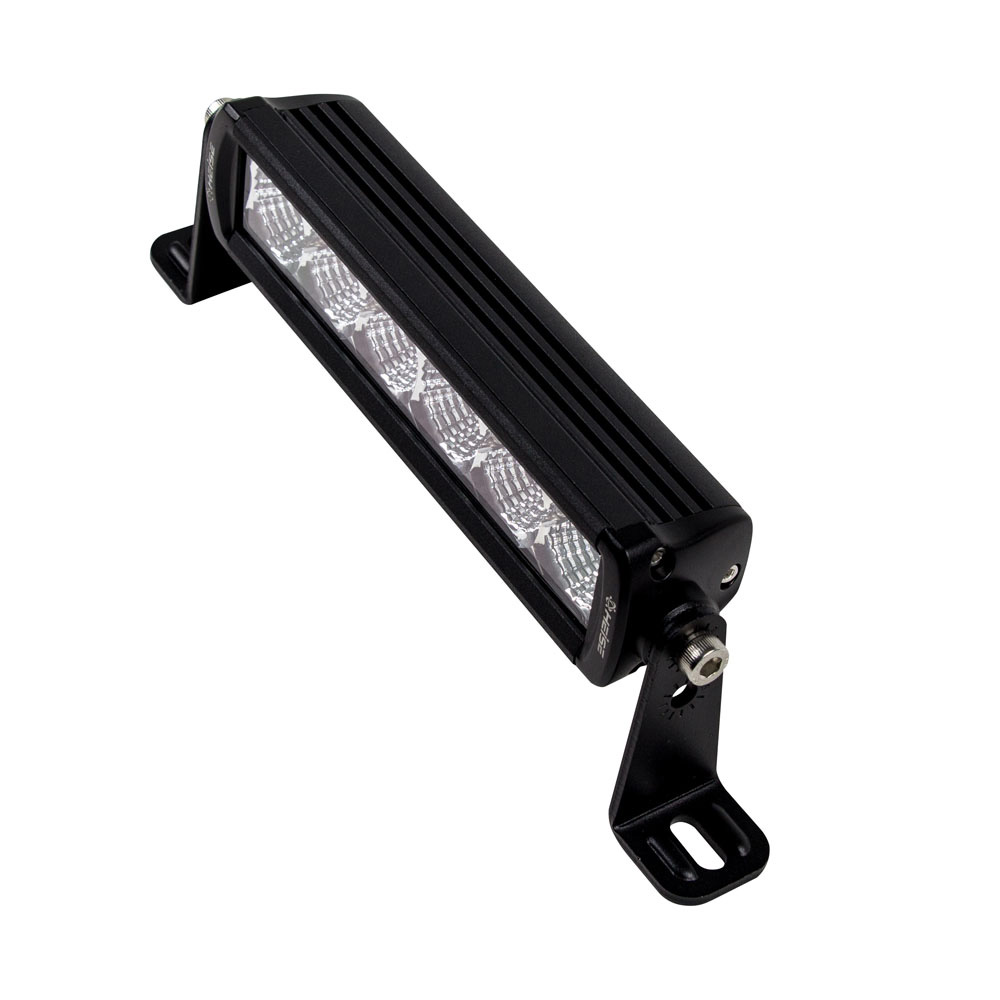

HEISE 9 1/4 SINGLE ROW LED LIGHT BAR SLIMLINE

Single Row Slimline LED Light Bar – 9-1/4″

SPECS

• Input Voltage: 10–30V DC
• Wattage: 18W (6–3W OSRAM LEDs)
• Raw Lumens: 1440
• LUX @ 10M: 22
• Color Temperature: 6000K
• Beam Pattern: 90° Flood

CONSTRUCTION

• Housing Material: Powder Coated Aluminum
• Housing Color: Black
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: Side and Bottom Mounting
• Mounting: Side and Bottom
• Hole Dimensions:

• Brackets turned inward – 9″
• Brackets turned outward – 11″
• Mounting Bolt Drill – .25″

• Height of Light Bar Itself: 2″
• Depth of Light Bar Itself: 2″
• Electronics: Integrated–Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: –40°C to +60°C
• Current Consumption: .9 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

• Beam Pattern = Flood
• Length (Inches) = 9.25″
• Housing = Black
• Voltage – Input Range (Volts) = 12/24v
