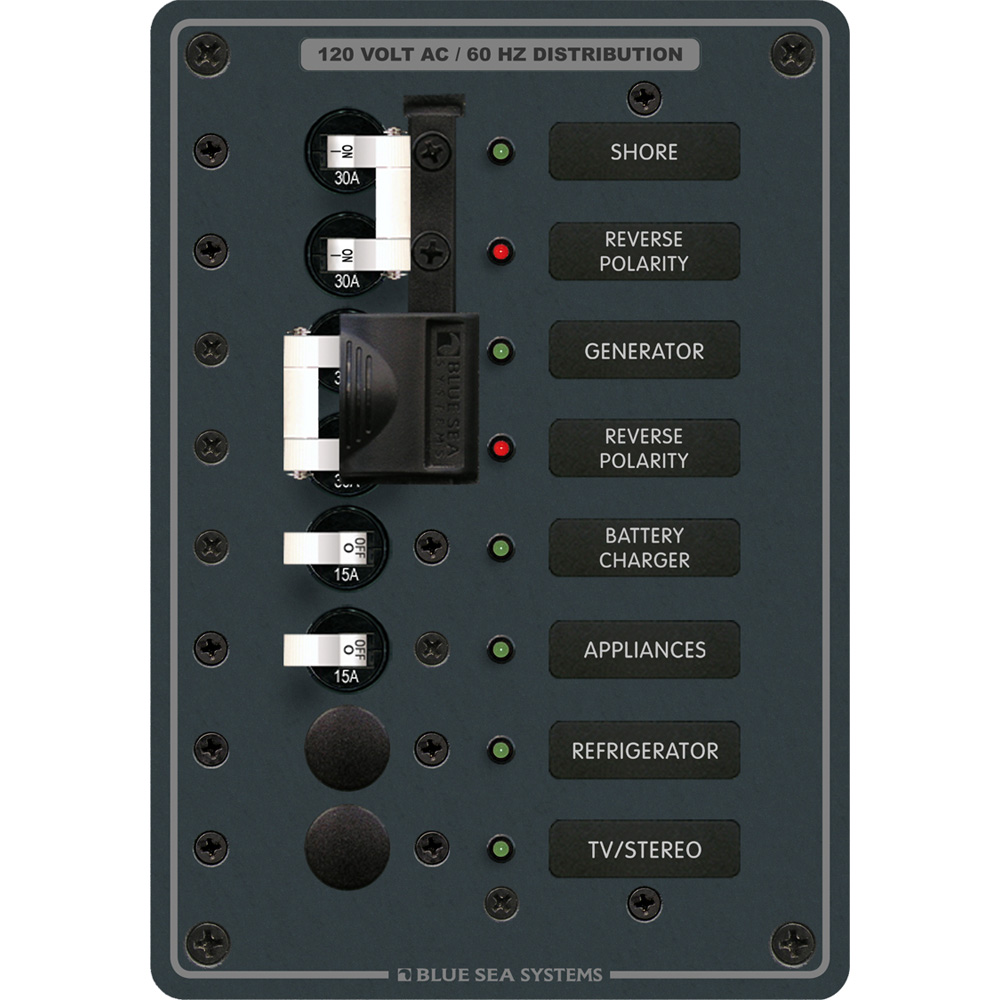

BLUE SEA 8467 BREAKER PANEL 120VAC SOURCE

AC 2 Sources + 4 Positions

• Double pole AC main circuit breakers with installed lockout slide
• Prevents connecting both AC sources simultaneously
• Maximum panel amperage – 50 Amperes
• Red reverse polarity indicating LED
• All hot, neutral and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels – No kit required
• “ON” indicating LEDs installed in all circuit positions
• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance
• Two-part polyurethane slate gray finish
• Heavy 1/8″ aluminum 5052 alloy
• Industry standard height and width
• Countersunk mounting holes throughout
• Detailed installation instructions and cutout template included
• Includes set of 30 common Large Format Labels
• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

• Voltage = 120v
• AC/DC = AC
• Max Breaker Quantity = 4
