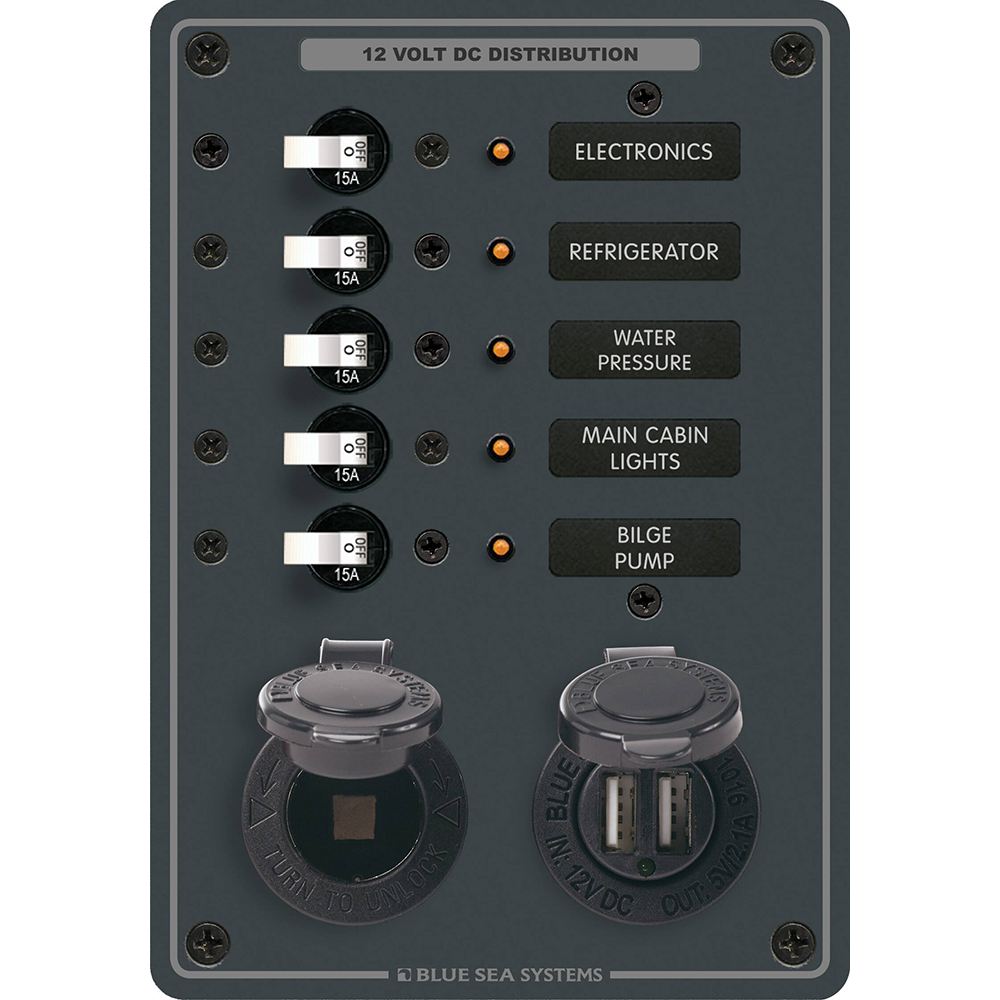

BLUE SEA 8120 BREAKER PANEL 5 POS WITH DC SOCKET & DUAL USB

8120 – 5 Position 12V Panel w/Dual USB & 12V Socket

Part of the Blue Sea Systems Battery Management Panels.  Distribute current from a high amperage source to lower amperage circuits.

Features:

• ON-indicating LEDs
  • Backlit label positions
• All positive, negative, and grounding buses installed, fully pre-wired

Specifications:

• Positions – Five (5)
• Nominal Voltage – 12V DC
• Maximum Amperage – 50A
• Circuit Breaker Type – Magnetic Hydraulic – Trip Free
• USB Output – 12/24V Dual USB
• Socket Output – 12V Dash socket
• Dimensions (H x W x D) – 7.5″ x 5.25″ x 2.5″ (191 x 133 x 64mm)

In the Box:

• 8120 Panel
• Instruction Manual

*Sold as an Individual

• AC/DC = DC
• Max Breaker Quantity = 5
• Voltage = 12
