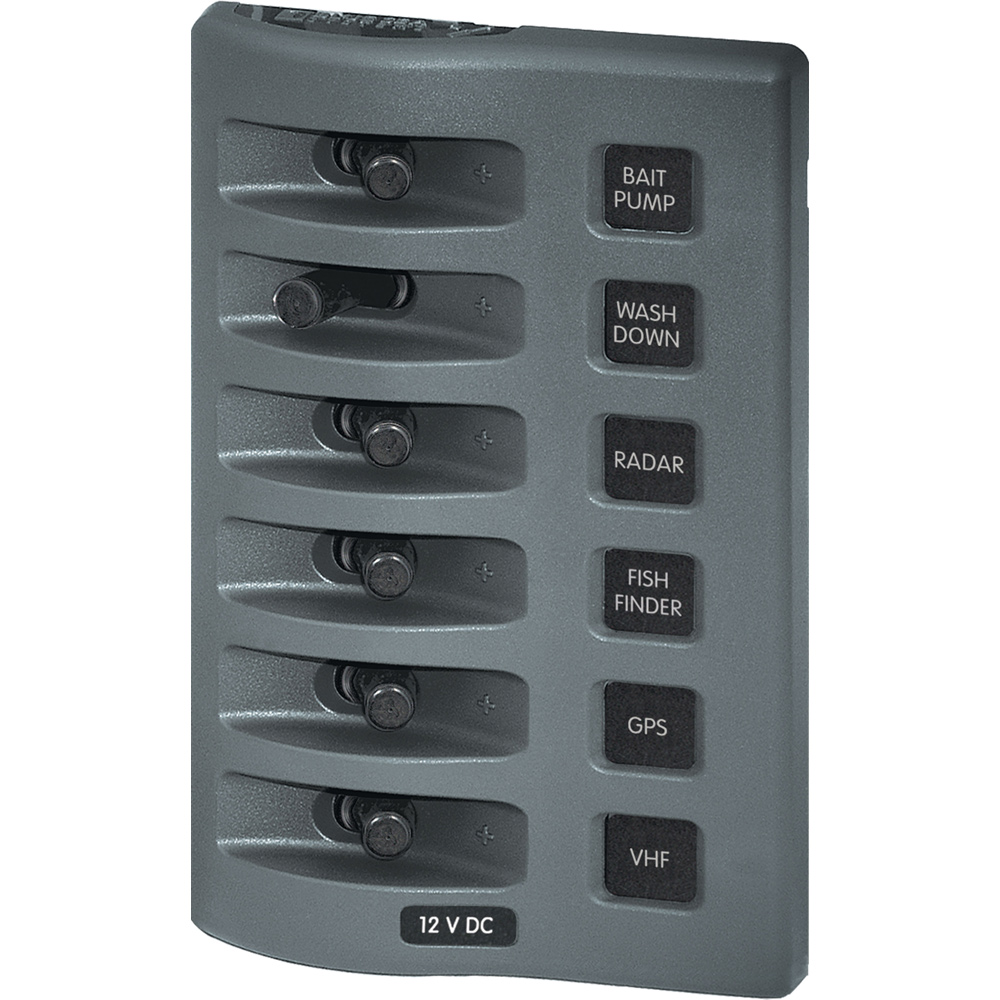

BLUE SEA 4307 WEATHERDECK PANEL 6 POSITION NO CIRCUIT

WeatherDeck® 12V DC Waterproof Switch Panel – 6 Position

• Integrated switch guards reduce the risk of accidental switching

• Panels can be mounted in four different orientations

• Panel front rated IP67 when properly mounted with watertight mounting gasket

• UV stabilized weather-resistant faceplate snaps on and off providing access to components and concealing mouting screws

Weatherproof: Waterproof
Positions: 6
Nominal Voltage: 12V DC/24V DC
Circuit Protection: None
Maximum Amperage: 15A @ 12V DC (per circuit)
Panel Cumulative Rating: 45A
Material: Reinforced Polycarbonate
Height: 6.00″(152.4 mm)
Width : 3.88″(98.55 mm)
Depth: 2.50″(63.5 mm)
Weight: 1.15lb (0.52 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

• Voltage = 12/24v
• AC/DC = DC
• Max Breaker Quantity = 6
• Waterproof = Waterproof
