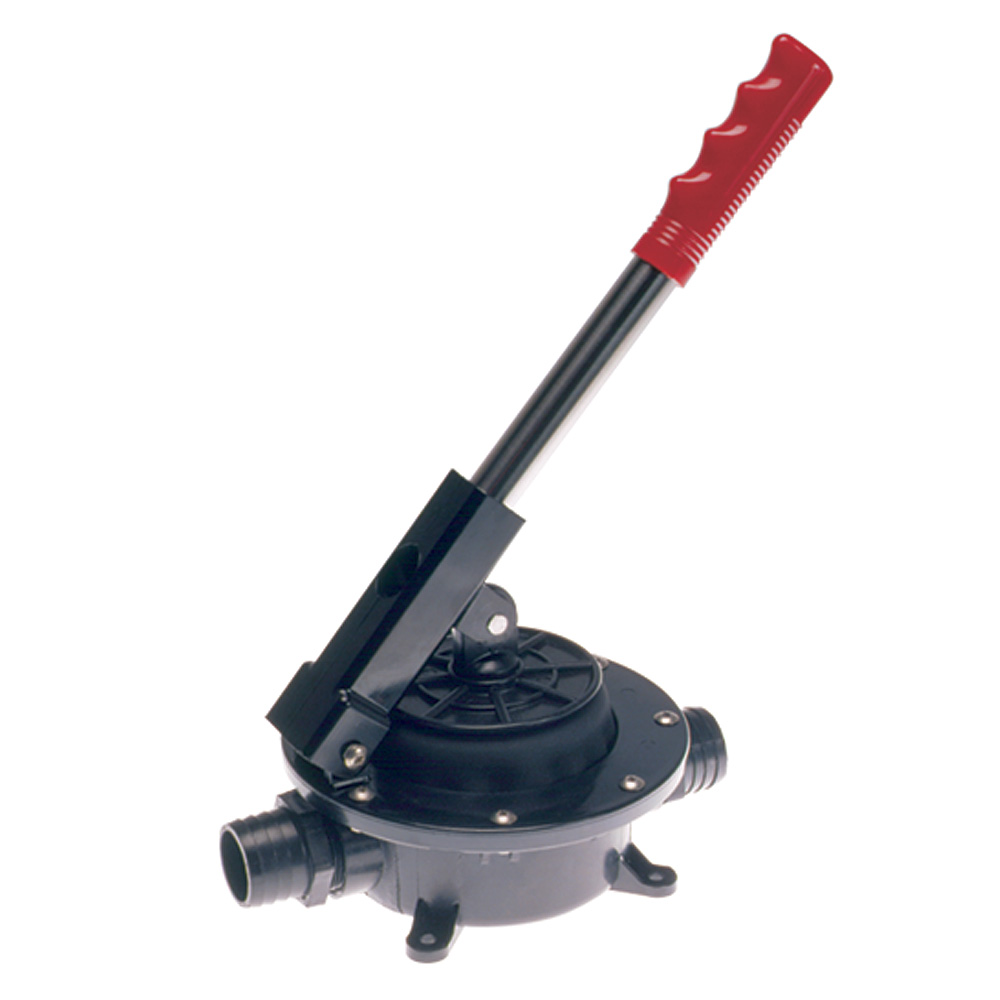

BECKSON DIAPHRAGM PUMP W/ SS HANDLE HOR/VERT MOUNT 16GPM

Diaphragm Pump

Made of corrosion-proof marine plastic. Two position stainless steel handle and adjustable (Octagonal) frame permits up to 16 variations in stroke direction. Mounts vertically on bulkhead or horizontally on deck without the need for special brackets. Uses Beckson FH-1-1/2 or VCS-1-1/2 hose.

Dimensions with handle removed:

• Length: 9″ (23 cm)

• Width: 6-1/4″ (16 cm)

• Height: 4-1/2″ (12 cm)

• Pumps: 16 gal. minute (60 L) (1 L per stroke)

• Gallons Per Hour = 960 GPH
• Gallons Per Minute = 16 GPM
• Type = Manual
